Projects  /  Commercial  /  Banksmeadow

Exell Street Multi-Unit Industrial

A multi-unit industrial development on a technically challenging, flood-prone site. Designed for heavy-vehicle access, operational efficiency and long-term resilience. A flexible, functional complex that balances practicality with thoughtful site planning.

Located on a flood-prone zone, this project in Banksmeadow transformed a challenging site into a 14-unit industrial complex with thoughtful design, high function and strong street presence. The design includes:

  • 14 industrial units, each with full truck access
  • A raised site level, so floodwater can flow safely over and through the grounds
  • A sub-floor “tanked” below flood level, with sump and pump-back systems that exceed standard compliance
  • Vehicle paths designed for forward manoeuvring by large rigid vehicles and semi-trailers
  • Parking in the sub-floor, beyond council’s minimum requirements
  • A separate street-facing commercial entry and office area for each unit
  • Established casuarina trees kept at the Exell Street exit – vital habitat for native black cockatoos

Car parking takes up a lot of site area, and the site also had to be raised above flood level. Putting the required parking in the sub-floor did both: it lifted the site, and it freed up the ground for more floor space, making the whole development more efficient.

LocationBanksmeadow
TypeCommercial
Photos8
SheetPRJ-03

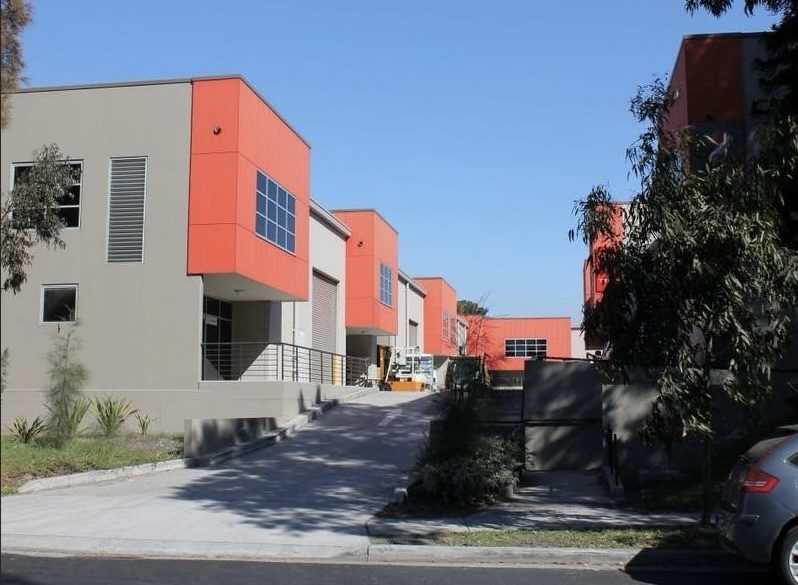

Consistent street identity. Through path allows for trucks to easily enter and leave in a forward direction, improving site efficiency and safety
Fig. 01 Consistent street identity. Through path allows for trucks to easily enter and leave in a forward direction, improving site efficiency and safety

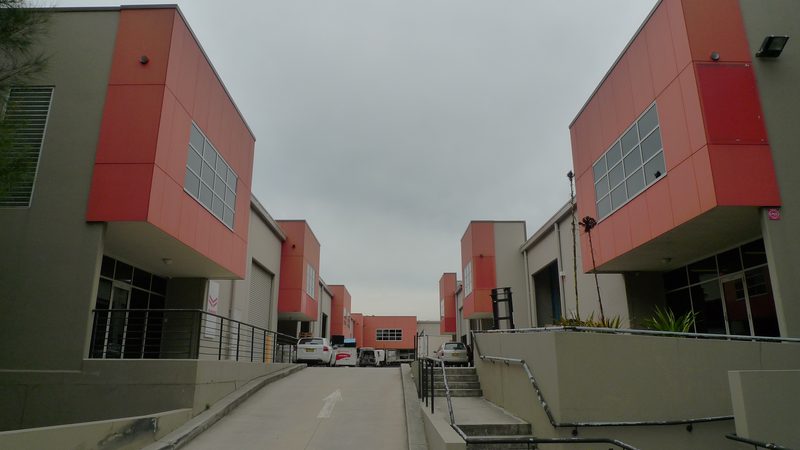

Interior approach from McPherson Street. Site level is raised as it is a flood vale zone. This allows for water to move over, and through the site.
Fig. 02 Interior approach from McPherson Street. Site level is raised as it is a flood vale zone. This allows for water to move over, and through the site.
01
Photos

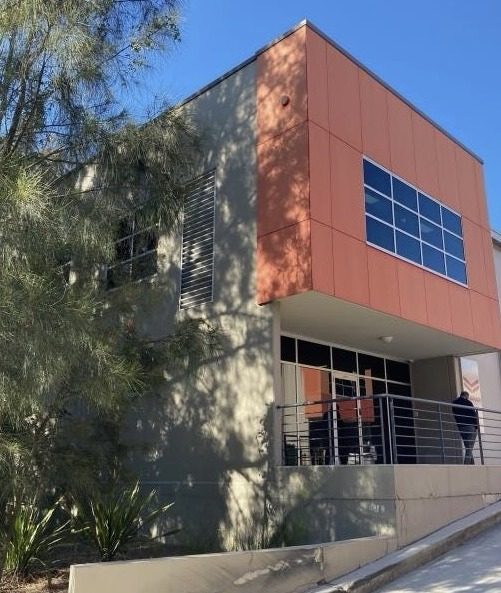

Each factory unit has a separate commercial entry and office area. All of the established Casuarinas, a vital food source to the local Black Cockatoos, were retained and improved.
Fig. 03 Each factory unit has a separate commercial entry and office area. All of the established Casuarinas, a vital food source to the local Black Cockatoos, were retained and improved.

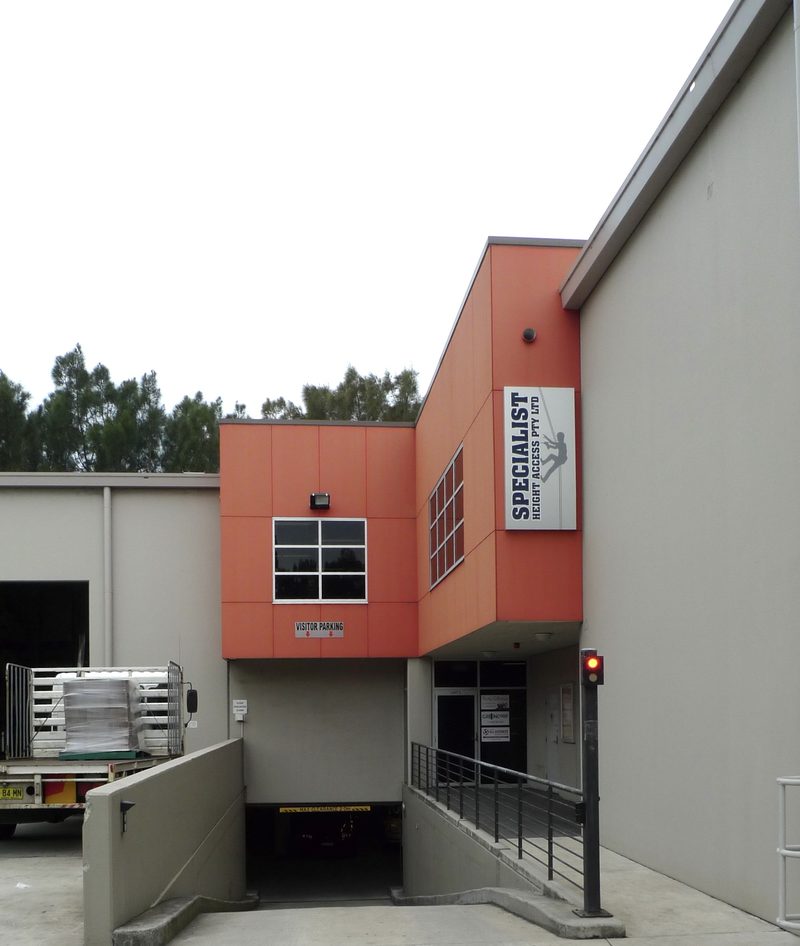

Access to the sub-floor car parking area
Fig. 04 Access to the sub-floor car parking area

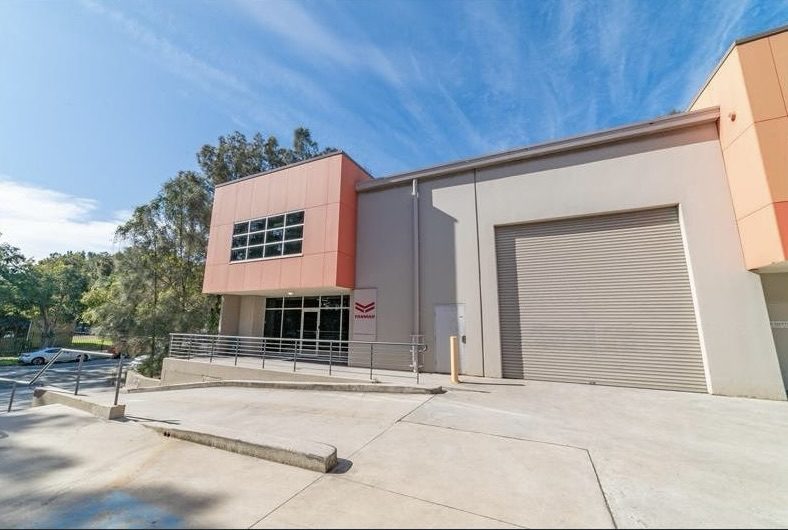

Full truck access to all 14 units with parking located underground
Fig. 05 Full truck access to all 14 units with parking located underground

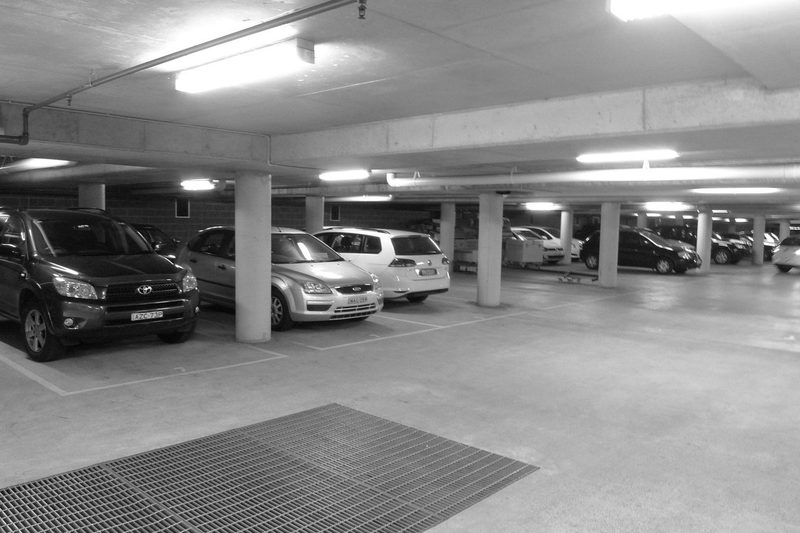

This area is below the flood level and is 'tanked' to prevent water ingress. Sump and pump back-up systems were provided in excess of council conditions
Fig. 06 This area is below the flood level and is 'tanked' to prevent water ingress. Sump and pump back-up systems were provided in excess of council conditions

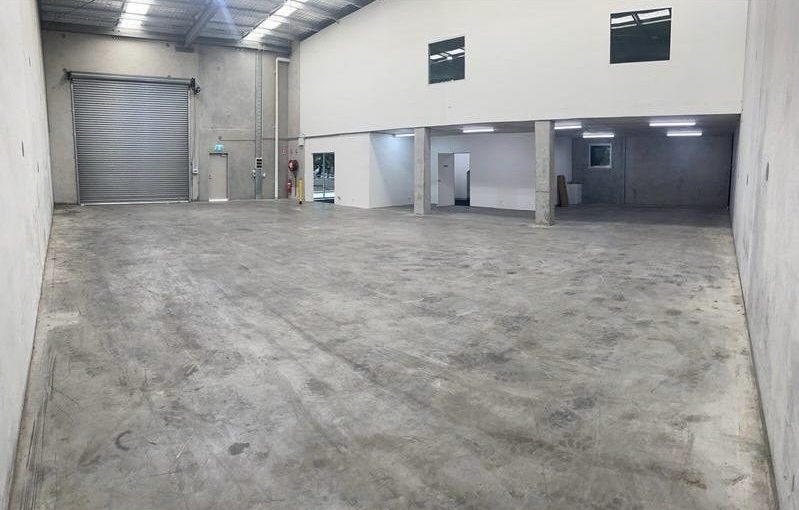

High bay doors allow container access with side loading, a very important feature for efficient industrial use. Ceiling heights of 8.5 m give pallet efficiency, as well as comfortable overhead space for the office areas.
Fig. 07 High bay doors allow container access with side loading, a very important feature for efficient industrial use. Ceiling heights of 8.5 m give pallet efficiency, as well as comfortable overhead space for the office areas.

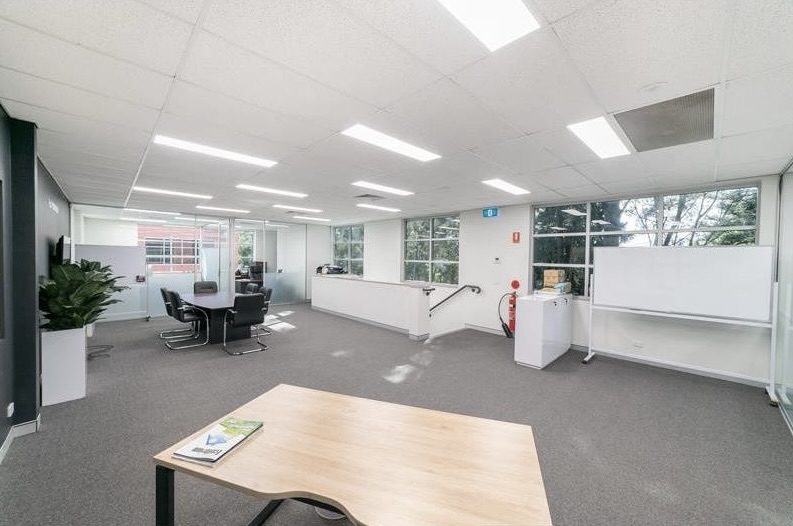

One of the office areas, fitted out. The floor plans are very flexible and largely rectangular, suiting a variety of uses.
Fig. 08 One of the office areas, fitted out. The floor plans are very flexible and largely rectangular, suiting a variety of uses.
